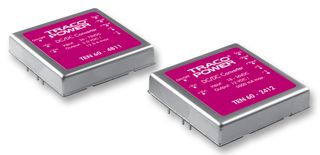

TEN 60-4812

The TEN 60-4812 is a high performance 60W DC-DC Converter Module with wide 2:1 input voltage ranges in a compact low profile case with industry-standard footprint. A very high efficiency allows an operating temperature range of -40 to 85°C. Built-in filters for both input and output minimize the need for external filtering. The device features include 12VDC output voltage, 36 to 75VDC input voltage range, remote ON/OFF, output voltage trimming, overvoltage protection and under-voltage lockout and short-circuit protection. This device is suitable for use in battery operated equipment and many applications where isolated, tightly regulated voltages are required and space is limited on the PCB.

• No minimum load required
• Shielded metal case with insulated base plate
• 90% Typical efficiency
• 48VDC Nominal input voltage
