W31-R10 JI
通孔电阻器, 0.1 ohm, W31 Series, 3 W, ± 5%, 轴向引线, 100 V
有货时请通知我
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY6.910 (CNY7.8083) |
| 50+ | CNY4.940 (CNY5.5822) |
| 100+ | CNY3.830 (CNY4.3279) |
| 250+ | CNY3.400 (CNY3.842) |
| 500+ | CNY2.960 (CNY3.3448) |
| 1000+ | CNY2.910 (CNY3.2883) |
产品信息
产品概述

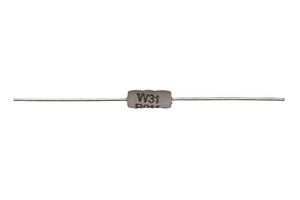

The W31-R10 JI is a 0.1Ω 3W through-hole mounting Wirewound Resistor with solder-coated copper terminations. A high quality ceramic substrate is assembled with interference fit end caps to which are welded the element to the body, providing an effective seal which is impervious to moisture, shock, vibration, fungus and salt spray. W31 resistor is legend marked with type reference, resistance value and tolerance and values are marked in accordance with IEC 62. The body and marking is resistant to all normal industrial cleaning solvents suitable for printed circuits. The resistor coating will not burn under any condition of applied temperature or component overload.
- Flameproof protection
- Custom built to meet pulse requirements
警告
该产品的市场需求较大, 导致交货时间延长, 交货日期可能会有延迟.
技术规格
0.1ohm
3W
轴向引线
绕线
防火
13mm
-55°C
-
W31 Series
± 5%
100V
± 200ppm/°C
5.8mm
-
155°C
No SVHC (21-Jan-2025)
技术文档 (1)
W31-R10 JI 的替代之选
找到 2 件产品
法律与环境
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
RoHS
RoHS
产品合规证书
